AV Stand for iPad Technical Specifications

NOTE: Information is for reference only and may be subject to change.

General Product Information	[Compliance Certification (CE) Link]
Warranty / Self Help	See product support page for warranty duration and frequently asked questions
Category	Stand/Speaker/Dock
Connection type	Wired
Wireless protocol	N/A
Wireless range	N/A
OS support	iOS
Compatibility	Platform specific: iPad
Apps available	N/A



Speaker/Dock Specifications

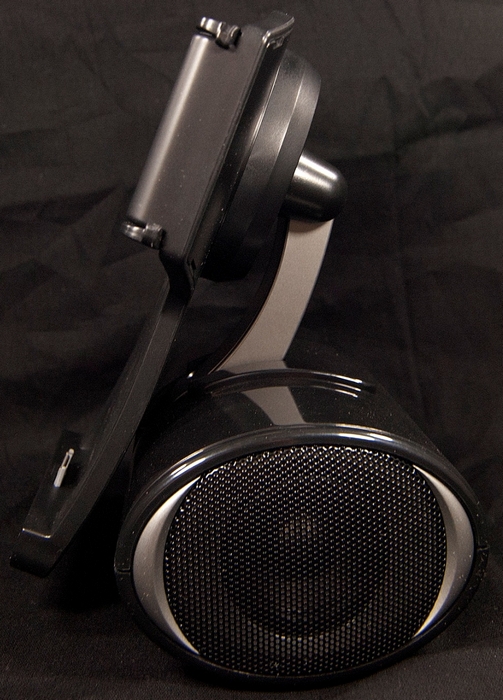

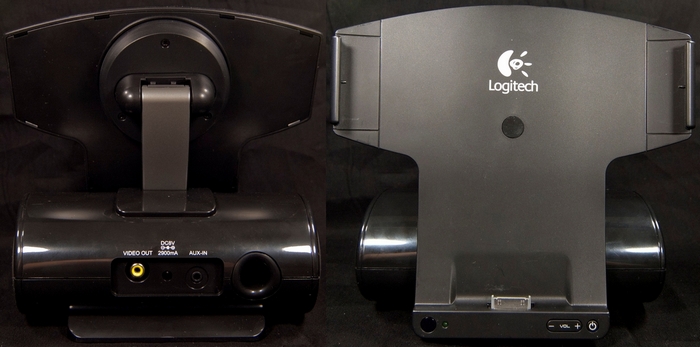

Available Image(s)	Click for: [Side Image] [Back Side Image]
Speaker Type	2.0 Speakers
Connection Type	Dock
Power Rating (RMS)	Total: 5w RMS, FS: 2.5w
HW Decoding (Effects)	N/A
Sound Pressure Level (SPL Max)	N/A
Frequency Response	N/A
Signal-to-Noise (SNR)	N/A
Input Impedance	N/A
Controls	Volume control, Power On/Off
Input Source	Analog Stereo (3.5mm), 30 Pin Dock (Apple)
Output Source	Composite Video
Indicator Lights (LED)	Green LED on front of dock (Solid, Off, Blink)
Cable Length	AC 6'/1.8m, Video 3.25"/1m



Remote Specifications

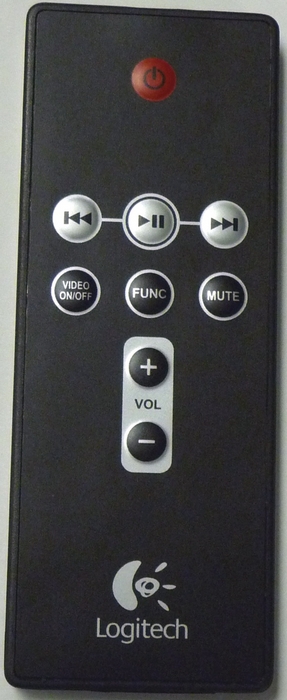

Available Image(s)	Click for: [Top Image]
Remote Type	InfraRed
Audio Controls	Volume control, Mute, Power On/Off, Track control, Play/Pause, Video On/Off, Func
Battery Type and Size	1x(Cell CR2032)



Package Contents
What is in the box	User documentation, AC adapter, Composite Video Cable



Product Dimensions
Product component	Width	Depth/Length	Height	Weight
Speaker/Dock	197mm (7.75 inch)	127mm (5.0 inch)	184mm (7.25 inch)	900g (115.7 ounce)
Remote	42mm (1.65 inch)	6mm (0.23 inch)	112mm (4.4 inch)	28g (1.0 ounce)
