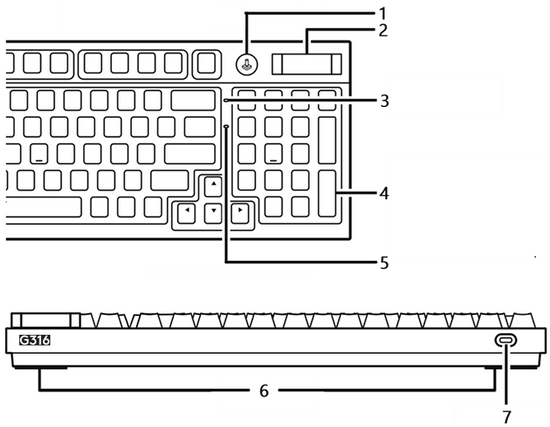

G316 Keyboard Features
- Game mode switch
- Volume roller
- 8K Hz indicator
- Per-Key RGB (Each key has RGB backlighting)
- Caps lock indicator
- Swappable feet

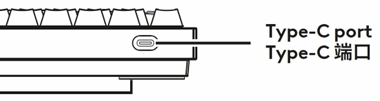

- Type-C port
Setting up your G316

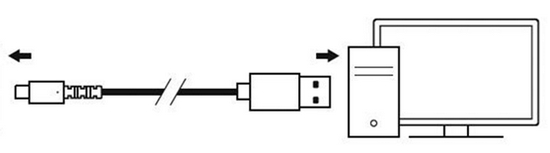

- Connect the keyboard to your PC using the cable provided.
- Download G HUB to customize your device and access enhanced features.

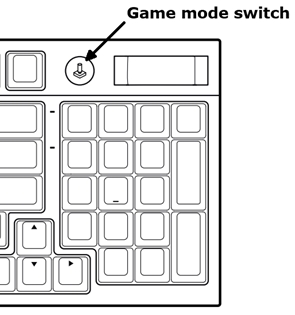

Game mode switch
This button disables the standard Windows key and other keys to avoid mis-operation during gaming.

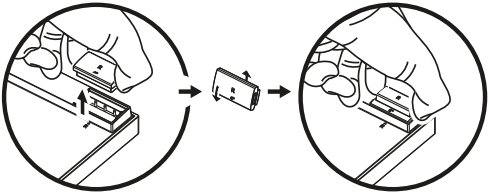

Swappable feet
The feet can be installed in either orientation to achieve tilting angles of 4° or 8° respectively.

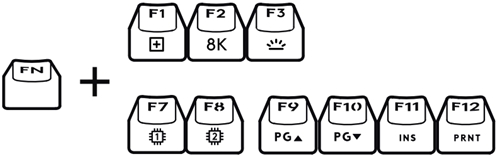

9 Fn-Based Shortcuts
Fn Shortcut |
Description |
|---|---|
Fn+F1 |
Full Key Customization hotkey |
Fn+F2 |
1K Hz vs 8K Hz Report rate Switch |
Fn+F3 |
Brightness adjustment - cycle levels 0/1/2/3/4 |
Fn+F7 |
Select Profile 1 |
Fn+F8 |
Select Profile 2 |
Fn+F9 |
Page Up |
Fn+F10 |
Page Down |
Fn + F11 |
Insert |
Fn + F12 |
Screenshot |
Disclaimer
The keycaps and switches of this keyboard support hot-swapping. We recommend using a keycap/switch puller (not included). Please ensure installation in the correct direction to avoid damage.
To achieve an 8KHz reporting rate, it is recommended to use the data cable included in the product packaging to directly connect the keyboard to your computer. If a USB adapter is required, please ensure it supports USB 2.0 High-Speed (480 Mbps) or USB 3.0 and above (5 Gbps or higher) transfer rates.
Failure to do so may result in insufficient support for 8KHz data transmission, which could affect the user experience.
